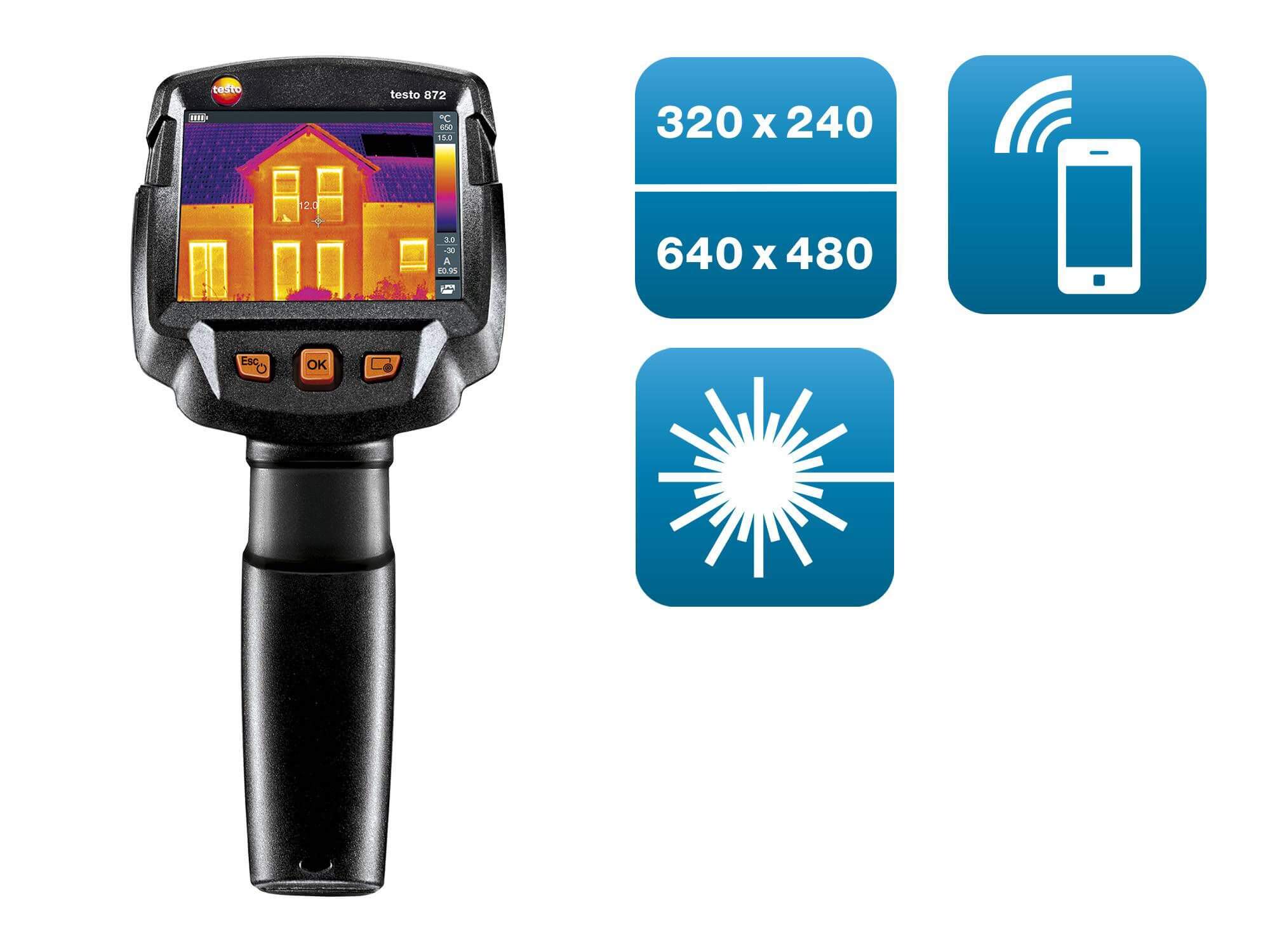

Testo 872 – Smart thermography with the highest image quality.
- Infrared resolution 320 x 240 pixels testo SuperResolution technology 640 x 480 pixels
- Thermal sensitivity 60 mK
- With testo Thermography App
- Integrated digital laser marker

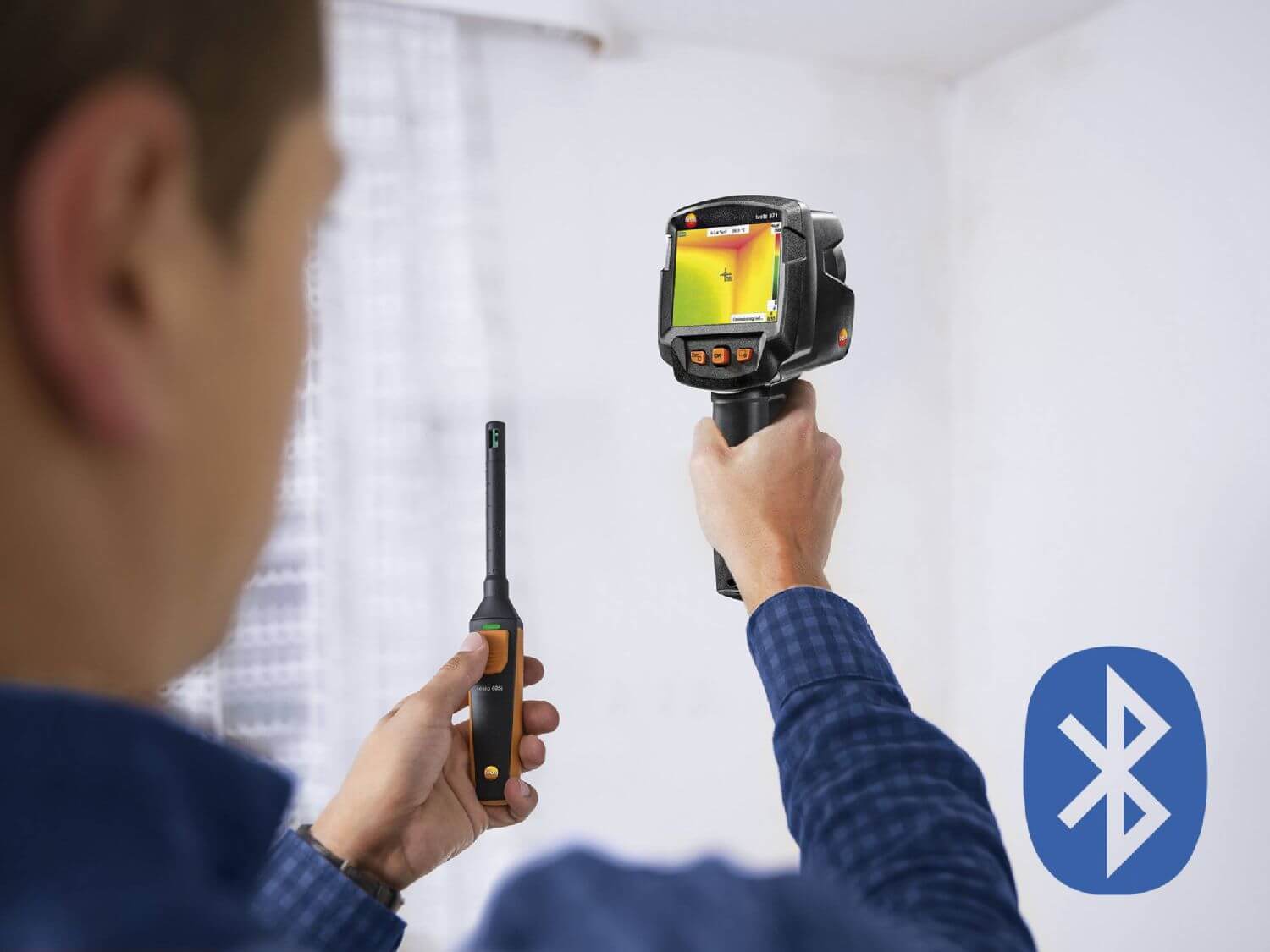

- Wireless measurement data transfer from clamp meter testo 770-3 and humidity measuring instrument testo 605i
- testo ScaleAssist and testo ε-Assist
Description:
The testo 872 thermal imager stands out thanks to its resolution of 320 x 240 pixels, an excellent thermal sensitivity, numerous innovative functions, smartphone connection via the testo Thermography App and the best price-performance ratio of its class. For even more meaningful thermal images, the thermal imager testo 872 also wirelessly integrates the measurement values of the clamp probe testo 770-3 as well as the thermohygrometer testo 605i (both available as an option).
- Highest image quality: IR resolution of 320 x 240 pixels, via integrated testo SuperResolution Technology 640 x 480 pixels
- Precise measurement: thermal sensitivity of 0.06°C

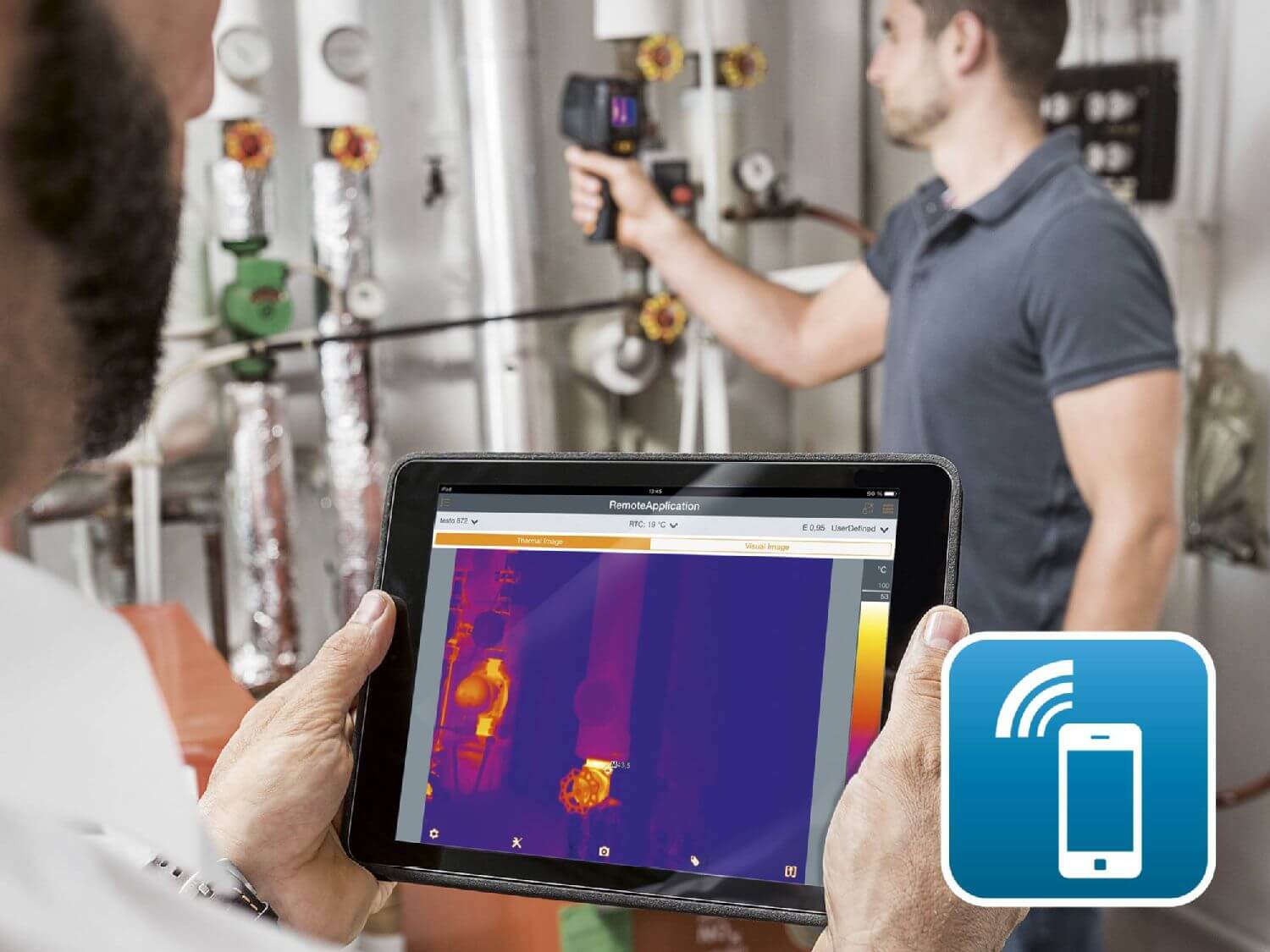

- Smart and wireless: use your mobile device with the free testo Thermography App and wirelessly transmit readings from the testo 770-3 clamp meter and the testo 605i humidity measuring instrument (both available separately)

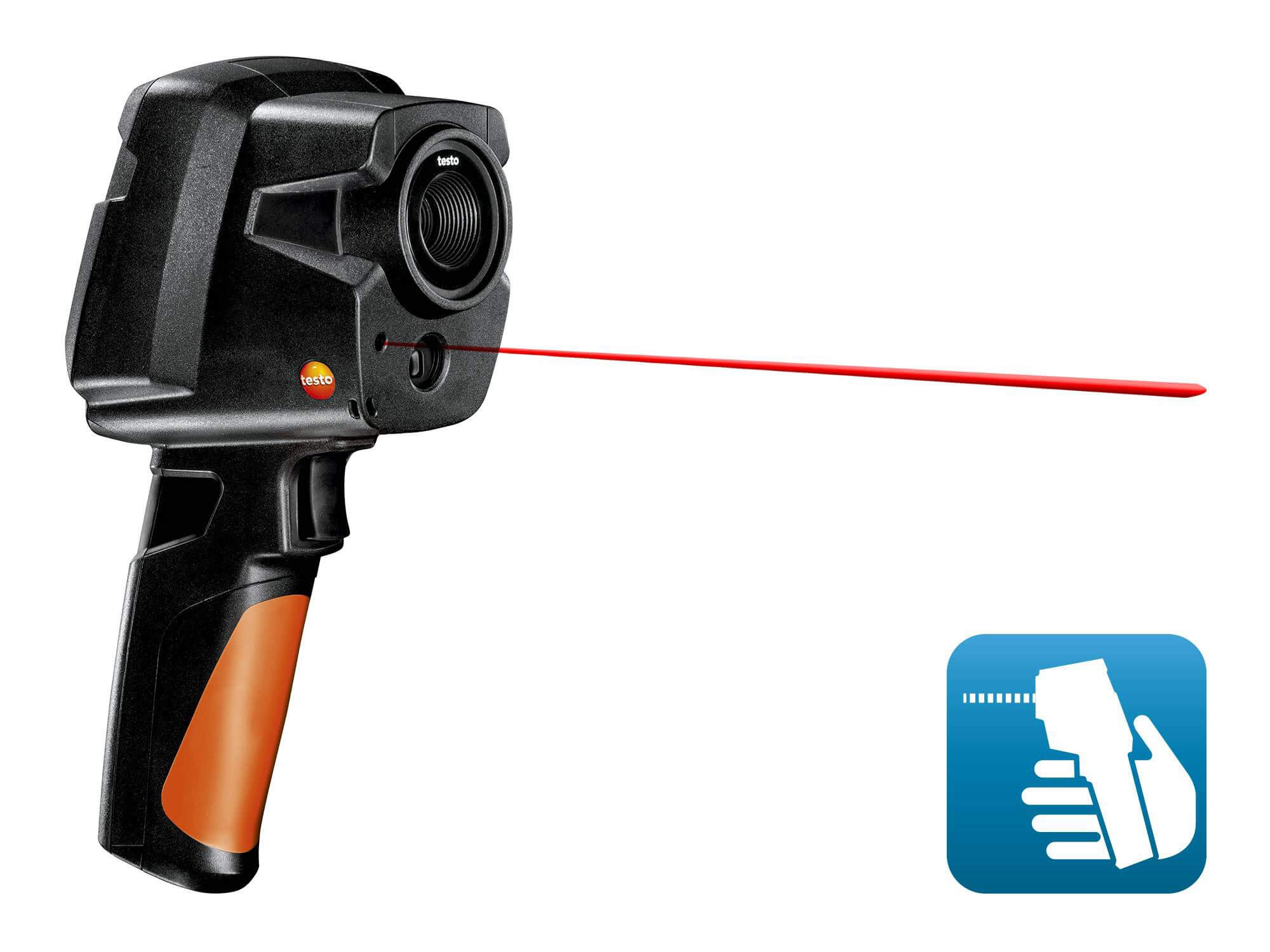

- Integrated laser marker – can also be precisely visualized as a measuring point in the thermal image
The testo 872 thermal imager gives you the best possible support for your work in professional industrial and building thermography. Take thermal images quickly, reliably and smartly with the highest image quality, very good thermal sensitivity and innovative functions. The case supplied with the thermal imager means it can be conveniently transported, so it is always there for you when needed.
Recommended fields of application
- Detecting structural defects and ensuring construction quality
- Energy consulting (including building shell)
- Leakage detection
- Preventive maintenance
Technical Data
| Infrared image output | |
| Infrared resolution | 320 x 240 pixels |
| Thermal sensitivity (NETD) | 60 mK |
| Field of view/min. focusing distance | 42° x 30° /
< 0.5 m |
| Geometric resolution (IFOV) | 2.3 mrad |
| testo SuperResolution (pixels/IFOV) | 640 x 480 pixels
1.3 mrad |
| Image refresh rate | 9 Hz |
| Focus | Fixed focus |
| Spectral range | 7.5 to14 µm |
| Visual image output | |
| Image size /
min. focusing distance |
at least 3.1 MP /
0.5 m |
| Image presentation | |
| Image display | 8.9 cm (3.5″) TFT, QVGA (320 x 240 pixels) |
| Digital zoom | 2x, 4x |
| Display options | IR image / real image |
| Colour palettes | iron, rainbow, rainbow HC, cold-hot, blue-red, grey, inverted grey, sepia, Testo,
iron HT |
| Data interfaces | |
| WLAN Connectivity | Communication with the testo Thermography App |
| Bluetooth1) | Measurement value transfer from thermohygrometer testo 605i, clamp meter testo 770-3 (optional) |
| USB 2.0 Micro B | ✔ |
| Measurement | |
| Measuring ranges | Measuring range 1: -30 to +100 °C
Measuring range 2: 0 to +650 °C |
| Accuracy | ±2 °C, ±2 % of measurement value (larger value applies) |
| Emissivity /
reflected temperature compensation |
0.01 to 1 / manual |
| testo ε-Assist | Automatic recognition of emissivity and determination of reflected temperature (RTC) |
| Measurement functions | |
| Analysis functions | Mean point measurement, hot/cold-spot recognition, Delta T,
area measurement (min-max on area) |
| testo ScaleAssist | ✔ |
| IFOV warner | ✔ |
| Humidity mode – manual | ✔ |
| Humidity measurement with humidity measuring instrument1) | Automatic measurement value transfer of thermohygrometer testo 605i via Bluetooth (instrument must be ordered separately) |
| Solar mode – manual | Input of solar radiation value |
| Electrical mode – manual | Input of current, voltage or power |
| Electrical measurement with clamp meter1) | Automatic measurement value transfer of clamp meter testo 770-3 via Bluetooth (instrument must be ordered separately) |
| Imager equipment | |
| Digital camera | ✔ |
| Lens | 42° x 30° |
| Laser2) | Laser class 2 |
| Video streaming | via USB, via wireless LAN with testo Thermography App |
| Storage as JPG | ✔ |
| Fullscreen mode | ✔ |
| Image storage | |
| File format | .bmt and .jpg; export options in .bmp, .jpg,
.png, .csv, .xls |
| Memory | Internal memory (2.8 GB) |
| Power supply | |
| Battery type | Li-ion battery can be changed on-site |
| Operating time | 4 hours |
| Charging options | In instrument/in charging station (optional) |
| Mains operation | ✔ |
| Ambient conditions | |
| Operating temperature range | -15 to +50 °C |
| Storage temperature range | -30 to +60 °C |
| Air humidity | 20 to 80 %RH, not condensing |
| Housing protection class (IEC 60529) | IP54 |
| Vibration
(IEC 60068-2-6) |
2G |
| Physical features | |
| Weight | 510 g |
| Dimensions (LxWxH) | 219 x 96 x 95 mm |
| Housing | PC – ABS |
| PC software | |
| System requirements | Windows 10, Windows 8, Windows 7 |
| Standards, tests | |
| EU directive | EMC: 2014/30/EU RED: 2014/53/EU |
